Nova® Flat Offset Angle Head 3 3/8 x 6

  • Accepts 1/4-28 Threaded Angle Bits
  • Capacity: 1/4"
  • Angle Head may be rotated 360° for superior operator control
  • Air Inlet 1/4-18 NPT
  • Heavy duty bottom plate adds rigidity and stability
  • Smooth quiet operation
  • One Year Warranty
  • Used for offset applications in hard to reach places for both drilling and
    screw installation and removal
  • Reversing function accommodates backdrilling
  • Scroll down to purchase complete Nova tool



1/4 - 28 Threaded Spindle

Quantity Description Part Number RPM In. - Lbs. Torque Weight Price Each
Nova Flat Offset Angle Head 3 3/8 x 6 - 1/4-28 Threaded Spindle Gear 90-043 - - 1 Lb. $288.00

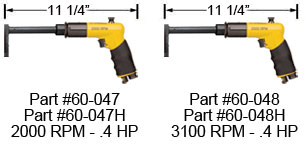

Nova Flat Offset Angle Head 3 3/8 x 6 with .4 HP Reversing Pistol Grip Housing - 1/4-28 Threaded Spindle Gear 60-047 2000 24 2.62 Lbs. $375.00
Nova Flat Offset Angle Head 3 3/8 x 6 with .4 HP Reversing Pistol Grip Housing - 1/4-28 Threaded Spindle Gear 60-048 3100 22 2.62 Lbs. $370.00

1/4 Inch Hex Drive

Quantity Description Part Number RPM In. - Lbs. Torque Weight Price Each
Nova Flat Offset Angle Head 3 3/8 x 6 - Hex Drive 90-043H - - 1 Lb. $288.00
Nova Flat Offset Angle Head 3 3/8 x 6 with .4 HP Reversing Pistol Grip Housing - Hex Drive 60-047H 2000 24 2.62 Lbs. $375.00
Nova Flat Offset Angle Head 3 3/8 x 6 with .4 HP Reversing Pistol Grip Housing - Hex Drive 60-048H 3100 22 2.62 Lbs. $375.00
