Nova® 90° Long Flat Offset Angle Head

  • Accepts 1/4-28 Threaded Angle Bits or 1/4" Insert Bits
  • Capacity: 1/4"
  • Rear Exhaust
  • Angle Head may be rotated 360° for superior operator control
  • Air Inlet 1/4-18 NPT
  • Motor housing milled from solid bar for precision motor alignment
  • Motor cylinder and rotor are hardened alloy steel to ensure proper alignment and long life
  • Smooth quiet operation
  • One Year Warranty
  • Scroll down to purchase complete Nova tool

1/4 - 28 Threaded Spindle

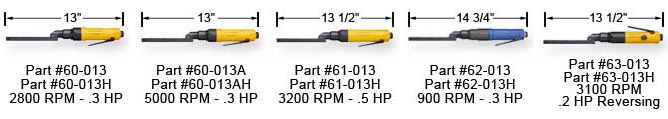

Quantity Description Part Number RPM In. - Lbs. Torque Weight Price Each
Nova 90° Long Flat Offset Angle Head - 1/4-28 Spindle Gear 90-013 - - 1.04 Lbs. $325.00
Nova 90° Long Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear 60-013 2800 25 2.1 Lbs. $455.00
Nova 90° Long Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear 60-013A 5000 22 2.1 Lbs. $455.00
Nova 90° Long Flat Offset Angle Head with .5 Horsepower Motor - 1/4-28 Spindle Gear 61-013 3200 35 2.4 Lbs. $465.00
Nova 90° Long Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear 62-013 900 52 2.3 Lbs. $505.00
Nova 90° Long Flat Offset Angle Head with .2 Horsepower Reversing Motor - 1/4-28 Spindle Gear 63-013 3100 22 2.4 Lbs. $670.00

1/4 Inch Hex Drive

Quantity Description Part Number RPM In. - Lbs. Torque Weight Price Each
Nova 90° Long Flat Offset Angle Head - Hex Drive 90-013H - - 1.04 Lbs. $325.00
Nova 90° Long Flat Offset Angle Head with .3 Horsepower Motor - Hex Drive 60-013H 2800 25 2.1 Lbs. $455.00
Nova 90° Long Flat Offset Angle Head with .3 Horsepower Motor - Hex Drive 60-013AH 5000 22 2.1 Lbs. $455.00
Nova 90° Long Flat Offset Angle Hex Head with .5 Horsepower Motor - Hex Drive 61-013H 3200 35 2.4 Lbs. $465.00
Nova 90° Long Flat Offset Angle Head with .3 Horsepower Motor - Hex Drive 62-013H 900 52 2.3 Lbs. $505.00
Nova 90° Long Flat Offset Angle Head with .2 Horsepower Reversing Motor - Hex Drive 63-013H 3100 22 2.4 Lbs. $670.00
