Nova® Flat Offset Angle Head

  • Accepts 1/4-28 Threaded Angle Bits or 1/4" Insert Bits
  • Capacity: 1/4"
  • Rear Exhaust
  • Angle Head may be rotated 360° for superior operator control
  • Air Inlet 1/4-18 NPT
  • Motor housing milled from solid bar for precision motor alignment
  • Motor cylinder and rotor are hardened alloy steel to ensure proper alignment and long life
  • Smooth quiet operation
  • One Year Warranty
  • Scroll down to purchase complete Nova tool

1/4 - 28 Threaded Spindle

Quantity Description Part Number RPM In. - Lbs. Torque Weight Price Each

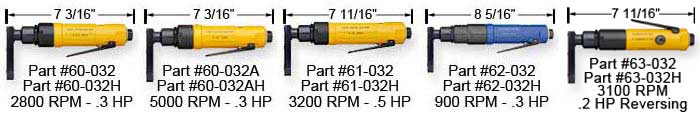

Nova Flat Offset Angle Head - 1/4-28 Spindle Gear 60-039 - - .5 Lbs. $215.00
Nova Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear 60-032 2800 25 1.07 Lbs. $345.00
Nova Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear 60-032A 5000 22 1.07 Lbs. $345.00
Nova Flat Offset Angle Head with .5 Horsepower Motor - 1/4-28 Spindle Gear 61-032 3200 35 2.12 Lbs. $355.00
Nova Flat Offset Angle Head with .3 Horsepower Motor - 1/4-28 Spindle Gear 62-032 900 52 2.2 Lbs. $395.00
Nova Flat Offset Angle Head with .2 Horsepower Reversing Motor - 1/4-28 Spindle Gear 63-032 3100 22 2.02 Lbs. $560.00

1/4 Inch Hex Drive

Quantity Description Part Number RPM In. - Lbs. Torque Weight Price Each
Nova Flat Offset Angle Head - Hex Drive 60-039H - - .5 Lbs. $215.00
Nova Flat Offset Angle Hex Head with .3 Horsepower Motor - Hex Drive 60-032H 2800 25 1.07 Lbs. $345.00
Nova Flat Offset Angle Hex Head with .3 Horsepower Motor - Hex Drive 60-032AH 5000 22 1.07 Lbs. $345.00
Nova Flat Offset Angle Hex Head with .5 Horsepower Motor - Hex Drive 61-032H 3200 35 2.12 Lbs. $355.00
Nova Flat Offset Angle Hex Head with .3 Horsepower Motor - Hex Drive 62-032H 900 52 2.2 Lbs. $395.00
Nova Flat Offset Angle Hex Head with .2 Horsepower Reversing Motor - Hex Drive 63-032H 3100 22 2.02 Lbs. $560.00
